Solutions for Belt Conveyor Maintenance and Belt Slipping

Mar. 05, 2020

The belt conveyor machine sometimes has some small problems in use. This requires you to pay attention to small movements during use to greatly extend the life of the vibrating screen.

1. If it is found that the conveyor belt slips on the transmission roller, find out the cause and adjust it in time.

2, often check the belt joints, find local damage to repair or replace the plate conveyor joints in time.

3. The idler should be overhauled regularly. An appropriate amount of grease must be added to the seal ring during overhaul. The idler idler should be replaced immediately.

4. Each rotating part of the belt conveyor must be well lubricated by a scale conveyor. The lubrication parts should be regularly filled with oil and replaced according to the requirements of use.

5. When troubleshooting, the power supply should be cut off for post-processing. Live work is strictly prohibited.

6. When the conveyor is working, it is not allowed to overhaul or step on the buried scraper conveyor belt.

7, should ensure that the cleaner has a good working condition, such as parts should be replaced in a timely manner.

8. Before each shift work, you must check the hydraulic conveyor coupling for oil leakage, whether the fusible plug is qualified, and check the oil filling amount of the hydraulic coupling of the chain plate conveyor. supplement.

9, often check the tension of the conveyor belt, found that the phenomenon should be tensioned MS-type buried scraper conveyor in a timely manner, after tensioning should pay attention to observe whether the belt deflects and adjust in a timely manner.

Nowadays, belt conveyors have been widely used in various industries, usually conveying dust, granular and small block materials, and the temperature of conveying materials should be less than 200 degrees Celsius. Due to the reasons of conveying materials, conveying height and working continuously for a long time, the conveyor belt will slip, so how can we avoid this phenomenon? Belt conveyor machine manufacturer share with you:

1. The weight tightens the slip of the belt packer belt.

The belt conveyor that is tensioned with a weight can be added with a counterweight to handle the belt when it slips, until the belt does not slip. But it should not be added too much, so as not to cause the belt to accept unnecessarily excessive tension and reduce the service life of the belt.

2. When using nylon belt or EP, a longer tensioning stroke is required. When the stroke is insufficient, it can be re-vulcanized or the tensioning stroke can be increased to handle.

3.Sliding of screw tensioning or hydraulic tensioning belt conveyor.

By using a spiral tensioner or a hydraulic tensioner belt conveyor, the tensioning stroke can be adjusted to increase the tensioning force when slipping. However, sometimes the tensioning stroke is not enough, and the belt has a permanent deformation. At this time, the belt can be cut off and the vulcanization can be stopped.

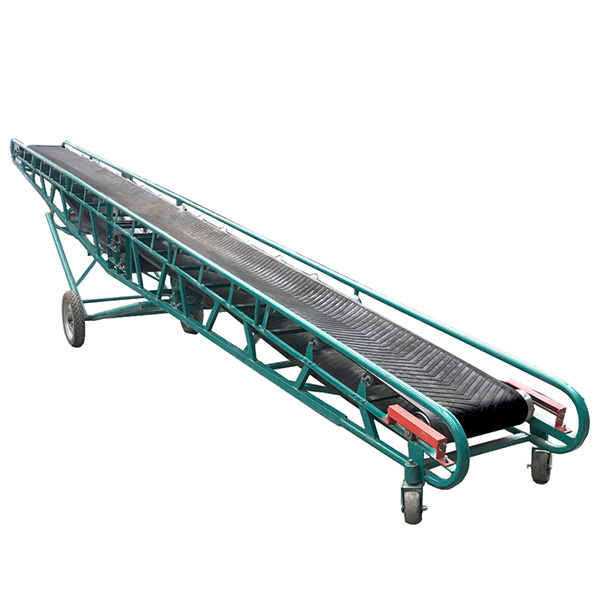

Belt Conveyor Machine
