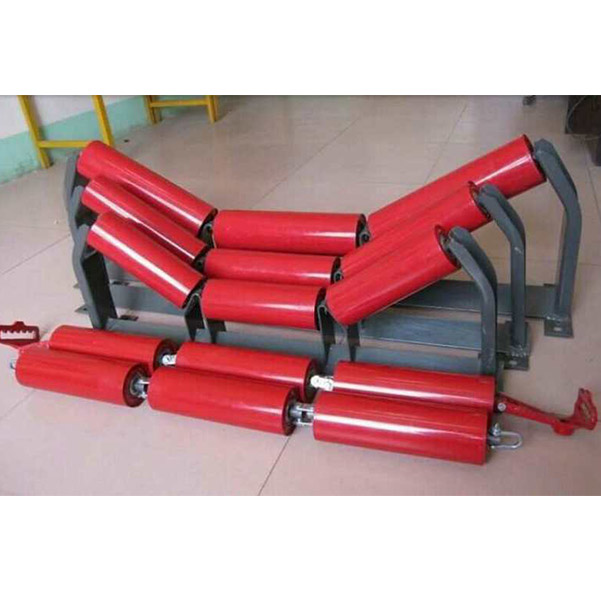

Trough idler

SPECIFICATIONS

Notes:

1. Conveyor roller idler feature:
1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting.
Besides we can manufacture the rollers and idlers according to the buyers' requirements.

Idler Diameter(mm)Length Scope(mm)Shaft Diameter(mm)Bearings Type(Min-Max)Idler's Shell Wall Thickness(mm)
50150-250020;252043.2-4.0
7620;25204 205
8920;25204 2053.2-6.0
10220;25;30204 205 3053.5-6.0
10820;25;30204 205 305 306
11420;25;30205 206 305 306
12720;25;30204 205 305 306
13320;25;30205 206 207 305 306
14020;25;30205 206 207 305 306
15220;25;30205 206 207 305 306 307 3084.0-6.0
15920;25;30;40;45205 206 207 305 306 307 308
16520;25;30;40;45207 305 306 307 3084.5-6.0




Advantage:
The life time: More than 30000 hours
Samples for testing are available.
The more relaxed payment terms/

Trough idler


2、Product feature:
1. Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Customize Welded Steel Tube or Seamless Tube
3. Shaft: Bright Drawn Steel to required bearing tolerance
4. Shaft End: Both ends of Tube are simultaneously machined and chamfered.
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Our roller saves on repair and maintenance costs of the conveyer belt due to the concentric design which decreases vibration.
Besides we can manufacture the rollers and idlers according to the buyers' requirements


3、

1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc

2. Tube: Q235

3. Shaft: 45# STEEL

5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8. Welding: Mixed gas shielded arc welding end

9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

Besides we can manufacture the rollers and idlers according to the buyers' requirements.


4. Usage:

· Mining---coal, iron ore, gold,

· Coal process plants

· Coal fired power stations

· Import/export terminals

· Steel plants

· Fertilizer plants

· Cement plants

· Gravel plants

· Quarry
