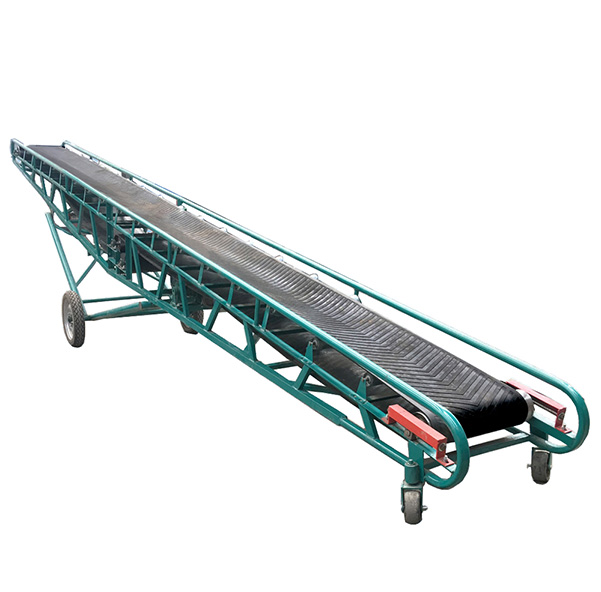

Belt Conveyor Machine

Inquire Now None

SPECIFICATIONS

Notes:

Introduction

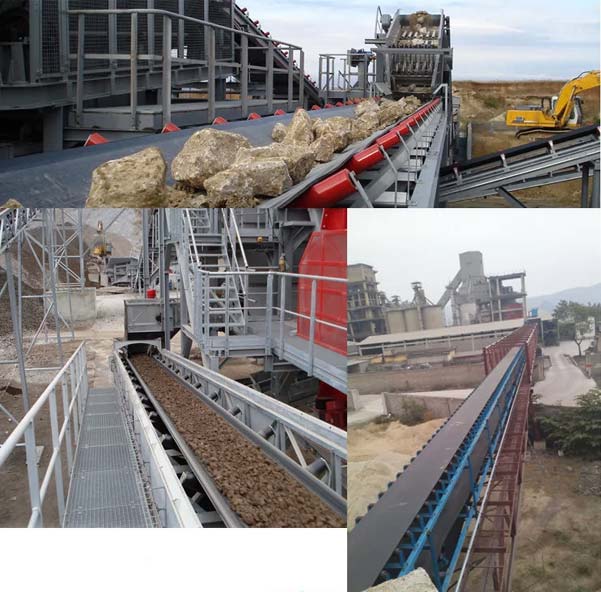

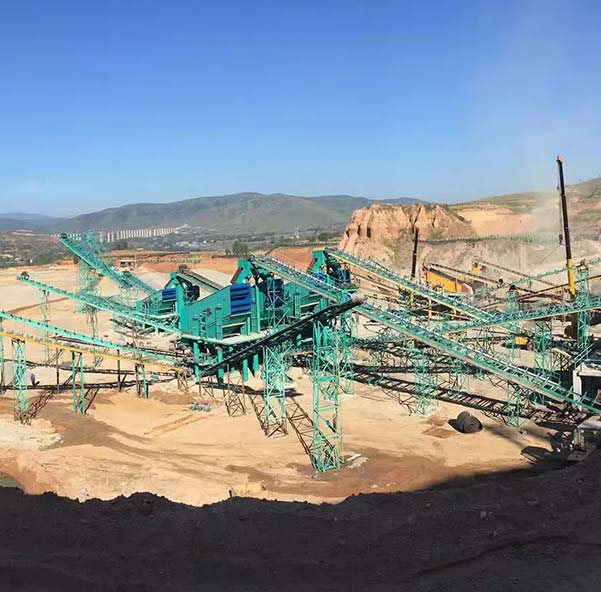

This product is the new improved product of DT II Series. It can be used in industries such as coal mine,port,power station,building material,metallurgy and so on.

Transporting various kinds of granular materials or goods whose bulk density is from 0.5t/m to 2.5t/m. Its operating temperature is defined from -25℃ to 40℃.

This capable of horizontal machine is transporting and slanting transportation,combining curved segment transporting and concave-convex straight-line segment transporting.

Belt conveyor system main technical parameter

Model	Belt width (mm)	Transmission drum's diameter	Bend pulleydiameter	Carrier roller'sdiameter	Belt speed(m³/h)	0.8	1	1.25	1.6	2	2.5	3.15	4	4.5	5	5.6	6.5
DT II(A)	500	500	250-500	89	Conveyingquantity(m³/h)	69	69	108	139	174	217
	650	500-630	250-630	89-108		127	159	198	254	318	397
	800	500-1000	250-1000	89-159		198	248	310	397	496	620	781
	1000	630-1600	250-1600	108-159		324	405	507	649	811	1014	1278	1622
	1200	630-1600	250-1600	108-159			593	742	951	1188	1486	1872	2377	2674	2971
	1400	630-1600	315-1600	108-159			825	1032	1321	1652	2065	2602	3304	3718	4130
	1600	630-1600	400-1600	133-194						2186	2733	3444	4373	4920	5466	6122
	1800	630-1600	400-1600	133-194						2795	3494	4403	5591	6291	6989	7829	9083
	2000	800-1600	500-1600	133-194						3470	4338	5466	6941	7808	8676	9717	11277
	2200	1000-1600	630-1600	159-219								6843	8690	9776	10863	12166	14120
	2400	1000-1600	800-1600	159-219								8289	10526	11842	13158	14737	17104

Model	Main motor
Model	Power range	Voltage range	Transmission connecting format
DT II(A)	2.2kw-315kw	380V is applied when the power is less than 200KW while 3KV or 6KV is applied when the power is more than 200KW	Resilient coupling is adopted when the power is 2.2-37KW while hydraulic coupling is adopted when the power is 45-315KW
