Motoried Pulley

SPECIFICATIONS

Notes:

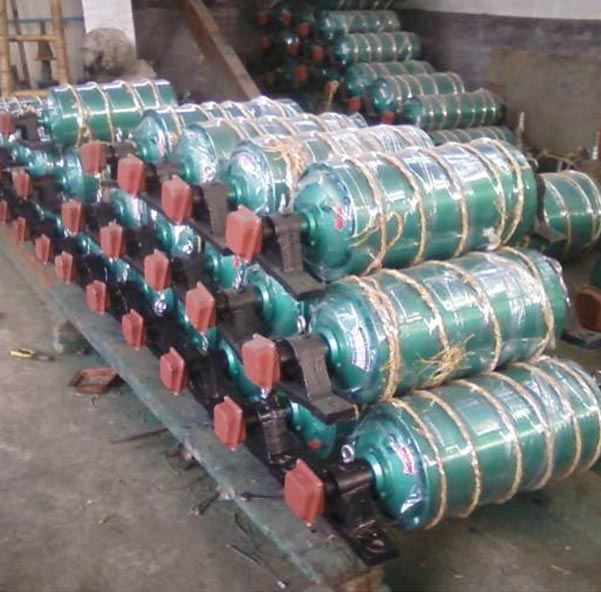

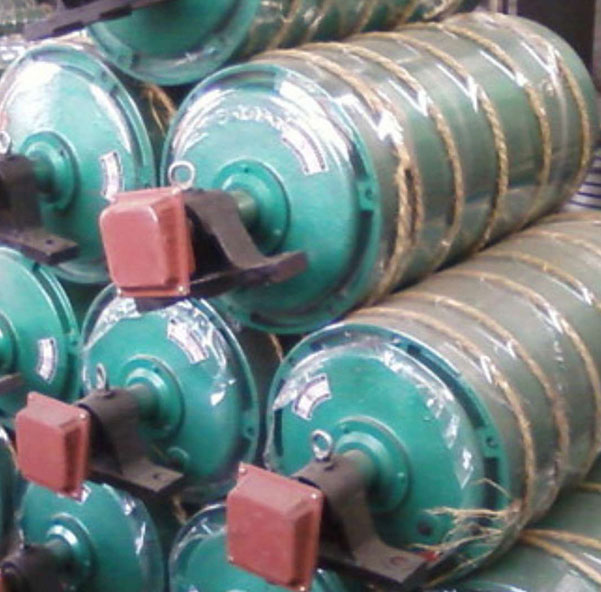

630mm dia YZ type oil cooling electric pulley system

Conveyor belt drum motor upporting various fixed belt conveyor ideal drive unit. Internal use of planetary cycloid reduction mechanism, with a large carrying capacity, strong overload capacity, smooth transmission, low noise, long life and other advantages. Can meet a variety of backstop, plastic bag and other requirements.


Motoried Pulley

Descriptionelectric pulley drum
TypeYD YZ  YZW YZWB
Power1.5 2.2 3.0 4.5 5.5 7.5 KW
Velocity of pulley surface0.32 0.4 0.5 0.63 0.8 1.0 1.25 1.6 2.0 2.5 Vm/s
Pipe / tube/shell1) Material : Q235 carbon steel2) Diameter : 4000 mm 3) Length:  600mm ~ 1600 mm4) Thickness: 6mm, 10mm or as require
Type conveyorDTII DTII(A) TD75
Shaft / axis1) Material:  Cold drawn steel C45(DIN)2) Diameter: 55 65 75 85 110 130
Bearingbig roving crack, deep groove ball with double sealing
Weldingpipe and bearing housing with automatic welding
Surfacesmooth steel surface, rubber face
ColorRed, yellow, blue or as require
StandardISO9001:2008 CEMA DIN TUV
Application
Used in coal mine, steel industry, cement industry and so on
Service life
More than 30,000 hours
