Pattern Conveyor Belt

SPECIFICATIONS

Notes:

Pattern:we can make different patterns conveyor belt,it is all up to your demand

Types:

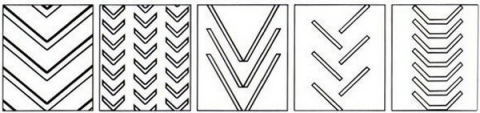

1) open v and closed v and other patterns
2) the depth of pattern is 15mm-25mm higher the surface
3) each kind of pattern includes three types, high, medium and low.

Pattern Conveyor Belt


Characteristic :

1.there is no joint in belt carcass
2.Long service life
3.Cleats and top cover rubber are vulcanized integrally

4.Cleat pattern, angle and pitch are designed elaborately


Standard:

DIN22102 (DINW,DINX,DINY,DINZ,DINK)

RMA(RMA Ⅰ, RMAⅡ)

AS1332( M24,N17 )

SANS 1173 (A,C,M,N)

GB7984-87


Application:

Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.

Pattern width: 500mm - 1400mm

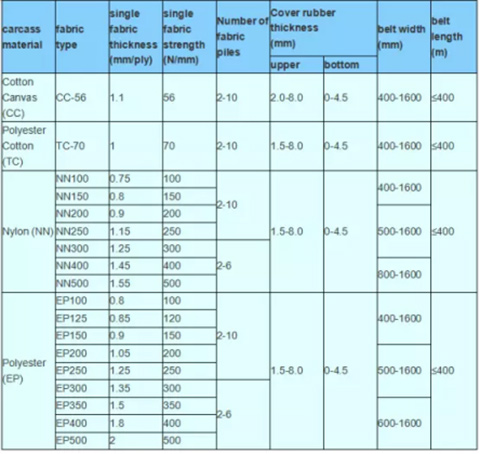

The following classifications according to carcass material:

Pattern Conveyor Belt


Cover properties of the belts

grade of cover rubberTensile strength,Elongation at break,% ≥abrasion loss,Change rate of tensile strength and elongation at break after 70°Cx168h aging
Mpa,≥mm3≤
laceration resistant type(H)24450120-25 ~ +25
abrasion resistant type(D)18400100-25 ~ +25
ordinary type(L)15350200-25 ~ +25
