SPECIFICATIONS
Notes:
NN EP canvas conveyer belt used in very low temperature has the characteristic of cold-resisting, can be used under a circumstance of -40°C and can not break.
Application: suitable for conveying materials outdoors in freezing area, cold storage, etc.
Technical index of NN EP canvas conveyer belt used in very low temperature:
1. NN EP canvas conveyer belt used in very low temperature can be divided into three types, according to the properties of cover: laceration resistant type(H),abrasion resistant type(D) and ordinary type(L).
2. According to the different cold resistant, it can be divided working temperature: from -45 to 50 degree into two types of C1 and C2-Working temperature: from -45 to 50 degree.
NN EP canvas conveyer belt used in very low temperature:
The physical performances of cover rubber:
| Item | Index | |||
| H | D | L | ||
| Tensile strength, Mpa≥ | 24.0 | 18.0 | 15.0 | |
| Elongation at break, %≥ | 450 | 400 | 350 | |
| Aging test (70°C.7d) | ||||
| Change rate of the tensile strength, % | ±25 | ±25 | ±25 | |
| Change rate of the elongation at break, % | ±25 | ±25 | ±25 | |
| Abrasion value, mm³≤ | 120 | 100 | 200 | |
| Cold resistant coefficient at elongate, ≥ | C1(-45°C) | 0.3 | ||
| C2(-50°C) | 0.2 | |||
| Remarks: H-laceration resistant type D-abrasion resistant type L-ordinary type | ||||
Parameter datas of NN EP canvas conveyer belt used in very low temperature:
| carcass material | fabric type | single fabric thickness | single fabric strength | Number of fabric piles | Cover rubber thickness | belt width | belt length | |
| (mm/ply) | (N/mm) | (mm) | (mm) | (m) | ||||
| upper | bottom | |||||||
| Cotton Canvas (CC) | CC-56 | 1.10 | 56 | 2-10 | 2.0-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Polyester Cotton (TC) | TC-70 | 1.00 | 70 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| Nylon (NN) | NN100 | 0.75 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| NN150 | 0.80 | 150 | ||||||
| NN200 | 0.90 | 200 | 500-2500 | |||||
| NN250 | 1.15 | 250 | ||||||
| NN300 | 1.25 | 300 | 2-6 | |||||
| NN400 | 1.45 | 400 | 800-2500 | |||||
| NN500 | 1.55 | 500 | ||||||
| Polyester (EP) | EP100 | 0.80 | 100 | 2-10 | 1.5-8.0 | 0-4.5 | 400-2500 | ≤400 |
| EP125 | 0.85 | 120 | ||||||
| EP150 | 0.90 | 150 | ||||||
| EP200 | 1.05 | 200 | 500-2500 | |||||
| EP250 | 1.25 | 250 | ||||||
| EP300 | 1.35 | 300 | 2-6 | |||||
| EP350 | 1.50 | 350 | 600-2500 | |||||
| EP400 | 1.80 | 400 | ||||||
| EP500 | 2.00 | 500 | ||||||

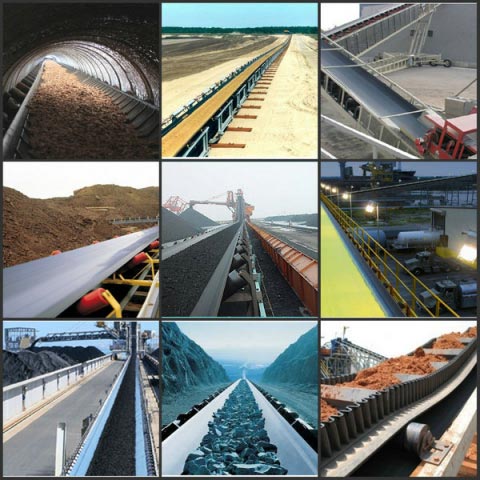

Product Uses
