  • Spiral idler

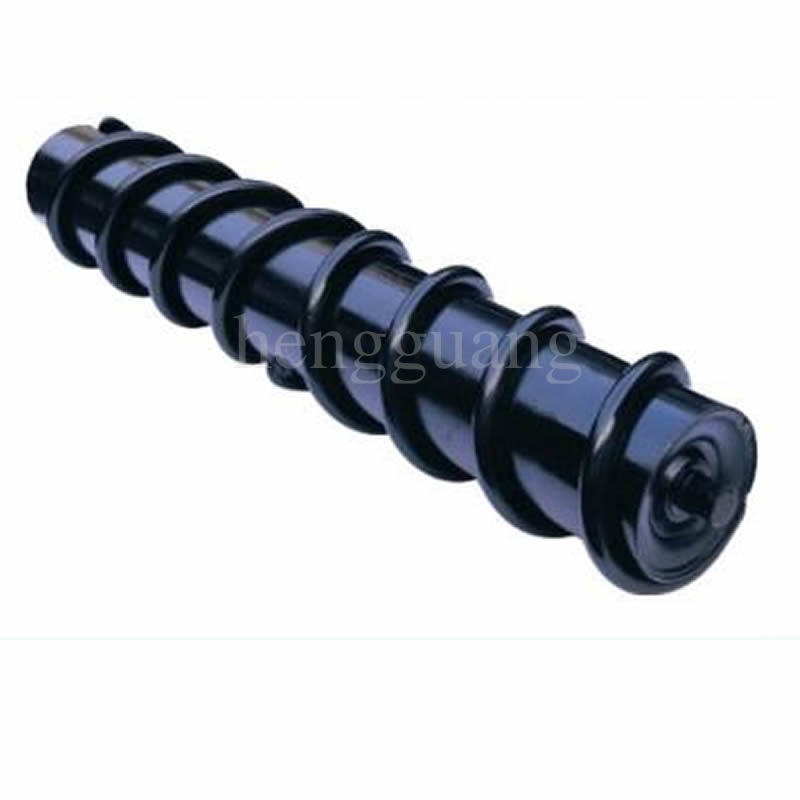

Spiral idler

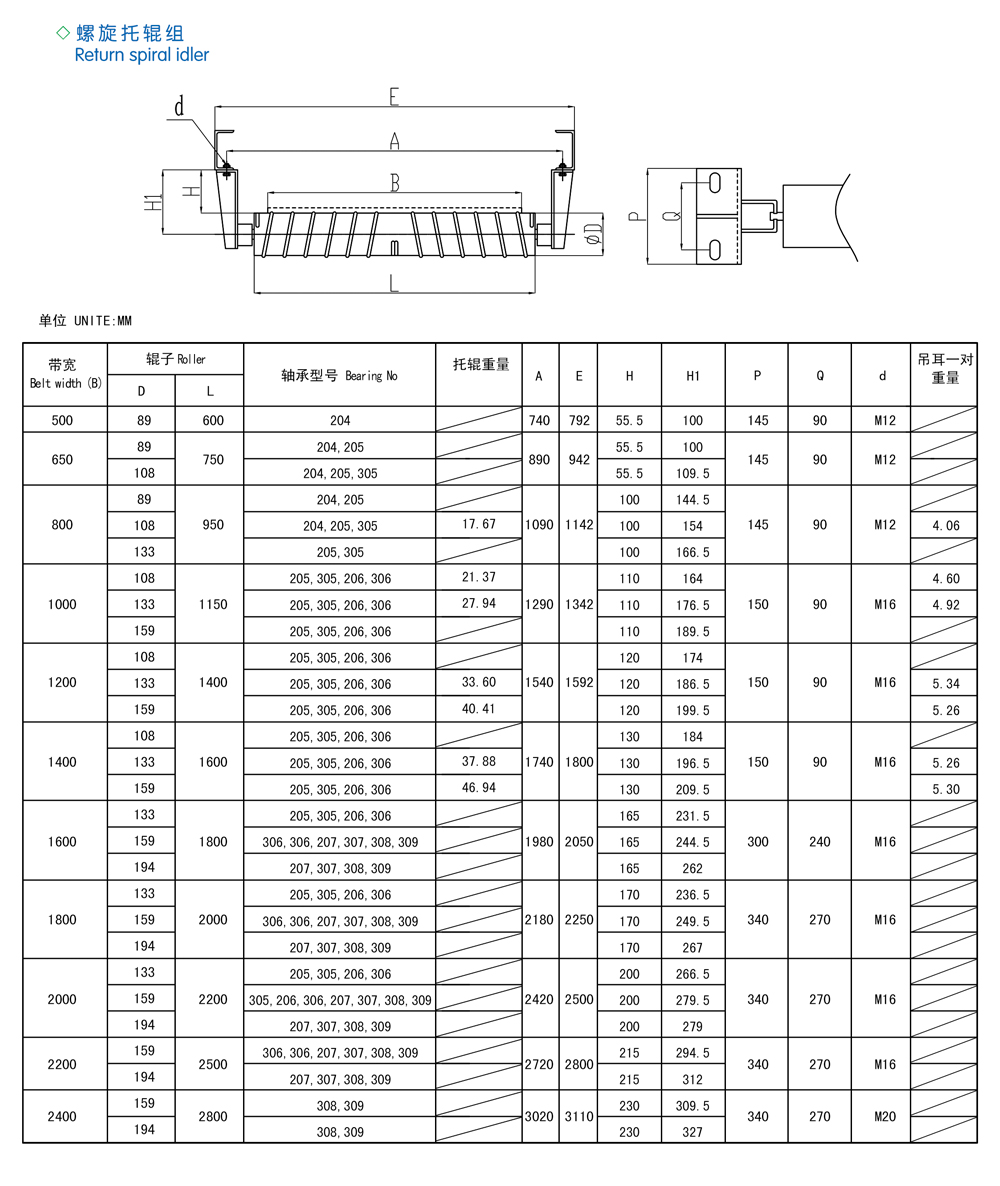

SPECIFICATIONS

Notes:

The spiral idler has the function of adjusting deviation and cleaning. The spiral idler has the function of adjusting deviation and cleaning.

Advantages of spiral idler:

1. The mechanical property is obviously superior to the traditional iron idler, with light weight;

2. The replacement procedure is simple and easy;

3. The problems of corrosion, roller sticking, belt deviation and tearing, etc. which are common in belt conveyor, have been solved fundamentally.

4. The unique product structure enables the conveyor belt to have the characteristics of non stick roller, strong self-cleaning force and non stick belt under the environment of conveying sticky and wet materials;

5. It has a strong ability to automatically correct the belt deviation, and at the same time, it protects and avoids the possibility of the rubber conveyor belt's stranding and tearing outside.

6. It has the characteristics of novel structure, convenient installation and maintenance, stable self centering transportation, non stick roll, low noise, low energy consumption and long service life of the belt.

7. Maximize the service life of conveyor belt and greatly reduce production cost.

Spiral idler
