How to Maintain Nylon Conveyor Belt?

Jun. 20, 2019

China Conveyor Belt Factory supplies you some methods to maintain nylon conveyor belt today. Let's have a look below.

How to Maintain Nylon Conveyor Belt?cid=6

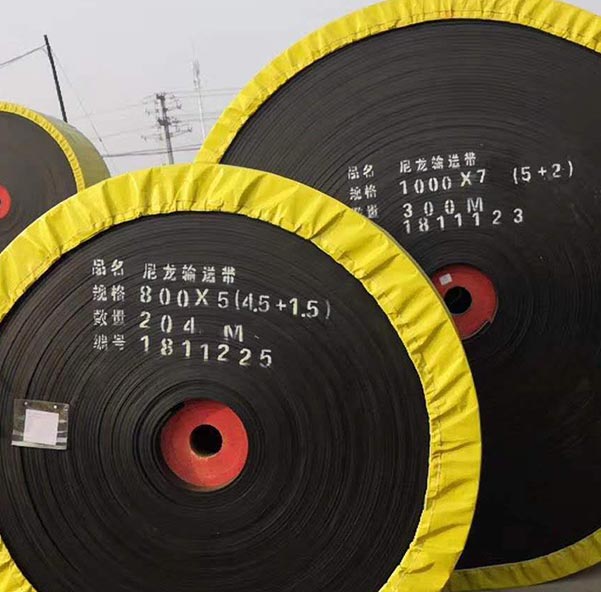

Nylon Conveyor Belt

1. The Nylon Conveyor Beltshould be kept clean during transportation and storage to avoid direct sunlight or rain and snow immersion, to prevent contact with acids, alkali, oils, organic solvents and other substances, and one meter away from the heating device.

2. The storage temperature should be maintained between 18-40 °C and the relative humidity should be between 50-80%.

3. During storage, the product shall be placed in rolls and shall not be folded. During the period of storage, it shall be turned once every quarter.

4. Different types and specifications of nylon conveyor belts should not be used together, and the joints are glued.

5. The type, structure, specification and number of layers of the conveyor belt should be selected according to the conditions of use.

6. The running speed of the conveyor belt is generally not more than 2.5 m / s. The block size is large, the abrasive material and the unloading device using the fixed pear should be used at low speed.

7. The relationship between the diameter of the transmission drum of the conveyor and the belt layer of the conveyor belt, the matching of the transmission drum, the reversing drum and the groove angle of the roller should be reasonably selected according to the design regulations of the conveyor.

8. The feeding direction should be in the running direction of the tape. In order to reduce the impact on the tape when the material falls, the chute should be adopted to reduce the falling distance of the material; the receiving section of the tape should shorten the spacing of the idler and use the cushioning roller as the leakage. The belt is compliant with a soft and moderate baffle plate to prevent the baffle plate from being too hard and scratching the belt surface of the conveyor belt.

9. The conveyor belt should pay attention to the following matters in use:

①to avoid the roller covered by the material, which will cause the rotation does not work; to prevent the leakage of the material between the roller and the tape, pay attention to the lubrication of the active part, but not the oil to transport the tape;

②to avoid with load start;

③tape deviation occurs, take measures to correct when applied;
